Electrical power systems form the invisible backbone of modern civilization, ensuring that energy generated at large power plants reaches urban centers, industrial zones, and rural communities safely and efficiently. Among the critical components that make this expansive delivery network possible, the acsr cable stands out as a fundamental building block of overhead transmission and distribution lines. Designed to meet the strenuous mechanical and electrical demands of long-distance power transport, this specialized conductor has remained a staple of electrical engineering for decades. By marrying two distinct materials into a single composite structure, utility providers and infrastructure developers can achieve a balance of high electrical conductivity and formidable structural resilience.

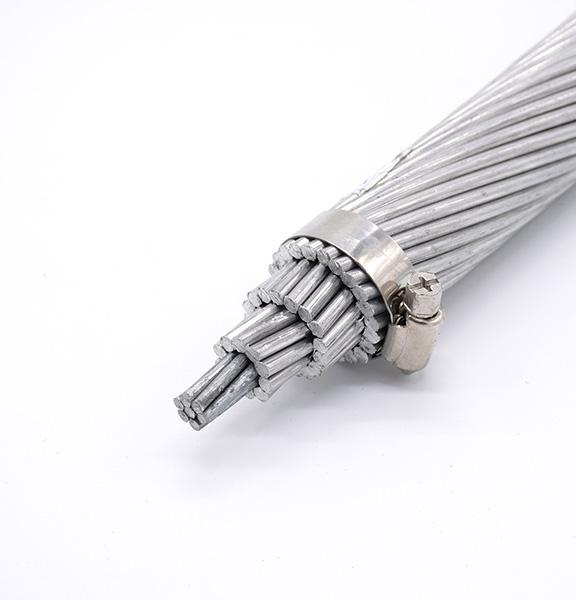

To fully appreciate the role of an acsr cable within contemporary power grids, one must examine its core architectural design. The acronym stands for Aluminum Conductor Steel Reinforced. This naming convention immediately reveals the dual-material composition that gives the conductor its unique operational profile. The outer portion of the cable consists of multiple strands of high-purity aluminum. Aluminum is intentionally chosen for the outer layers due to its exceptional electrical conductivity, relatively low weight, and cost-effective nature compared to alternative metals like copper. Because alternating current tends to travel along the outer surface of a conductor due to skin effect phenomena, placing aluminum on the exterior optimizes current transmission while keeping the overall weight of the span manageable.

Running through the center of the assembly is the structural backbone: a core made of high-strength galvanized or aluminum-coated steel wires. Aluminum by itself possesses high ductility and a relatively low tensile strength, meaning a pure aluminum line would sag dangerously or snap under its own weight when strung across wide expanses between transmission towers. By embedding a central steel core, manufacturers provide the necessary mechanical muscle to support massive spans without stretching or deforming the softer aluminum strands surrounding it. This configuration grants the entire assembly a high tensile-to-weight ratio, which is indispensable when routing power lines across challenging topographies such as deep valleys, rivers, and rugged mountainous terrain.

The manufacturing process of a standard acsr cable involves precision engineering and stringent quality control measures to ensure uniform performance under environmental stress. High-grade aluminum rods and steel wires undergo careful cleaning, drawing, and treatment processes before being brought together on specialized stranding machinery. The central steel wires are stranded first to form a tight, solid core. Subsequently, layers of trapezoidal or round aluminum wires are helically wound around this core in alternating lay directions. This concentric layering ensures balanced torque and prevents the cable from unraveling or twisting under tension. Depending on the specific environmental exposures anticipated—such as coastal salt spray or industrial chemical pollution—additional measures like grease impregnation or specialized coatings can be applied during production to shield the inner steel core from moisture and corrosion.

Throughout the lifecycle of a power network, grid operators must contend with severe meteorological conditions, including high wind velocities, heavy ice accumulation, and extreme temperature fluctuations. An acsr cable is engineered to absorb and withstand these dynamic mechanical loads. The steel core absorbs the primary tensile stress caused by wind and ice loading, protecting the electrical pathways from structural failure. Meanwhile, the exterior aluminum matrix accommodates thermal expansion and contraction cycles without compromising the electrical integrity of the circuit. This harmonious interplay between steel and aluminum allows transmission lines to maintain safe ground clearances and operational stability year after year, even when subjected to harsh environmental extremes.

In addition to mechanical durability, the electrical performance of an acsr cable remains a vital consideration for power system planners. Grid efficiency depends heavily on minimizing resistive losses over extended transmission distances. The high purity of the aluminum strands guarantees low direct current resistance, which translates into reduced energy waste as electricity flows from generation facilities to local substations. Furthermore, standardizing these conductors simplifies maintenance procedures, repairs, and grid expansions, as utilities worldwide are intimately familiar with their load ratings, sag charts, and hardware compatibility requirements.

The versatility of the acsr cable allows it to be deployed across a diverse spectrum of voltage classes. From medium-voltage local distribution feeders that bring electricity directly into commercial and residential neighborhoods to extra-high-voltage and ultra-high-voltage transmission corridors moving gigawatts of power across entire regions, these composite conductors adapt seamlessly to varying grid configurations. Engineers select specific stranding ratios—such as standard configurations combining specific counts of aluminum and steel wires—to match the exact electrical capacity and mechanical span requirements of each unique engineering project.

As global demand for electrical energy continues to rise alongside the integration of renewable energy sources like wind and solar farms located far from major consumption centers, the need for robust transmission infrastructure becomes even more pronounced. Power grids must expand and modernize to handle shifting load dynamics and decentralized generation patterns. Within this context, the deployment of reliable overhead conductors remains as relevant today as it was decades ago, anchoring the physical transmission grids that power modern economies and sustain daily life worldwide.

Final Thoughts

The ongoing evolution of electrical transmission grids relies heavily on proven, dependable materials that can bridge vast geographical distances while maintaining structural and electrical integrity. The acsr cable successfully bridges this gap by merging the high conductivity of aluminum with the mechanical robustness of steel. By understanding the meticulous construction, metallurgical properties, and structural behavior of these conductors, electrical engineers and utility providers can continue to build resilient, efficient, and long-lasting power transmission networks that meet the energy demands of tomorrow.
